MFK

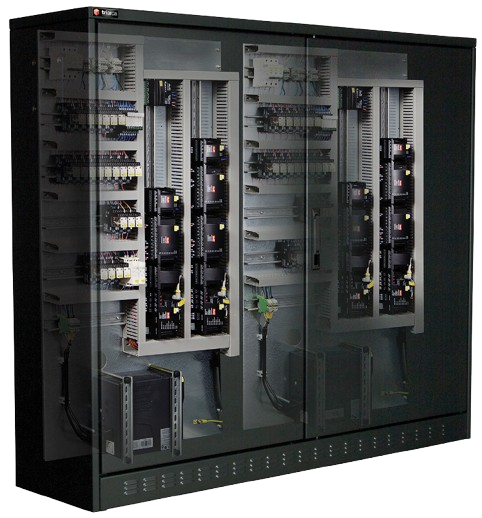

- Capsulation series for equipment with control and electrical equipment mounted on mounting plate
- Passive convection, prepared for active ventilation
- Prepared for plinth
- Hinged door(s) with concealed hinges
- 3-Point locking system with swing handles and cylinder lock from EURO
- Separate foundation for burial or casting
Good reasons to choose MFK
- Prepared for plinth. Large range of accessories
- Passive convection and prepared for active ventilation and heat control
- 3 sizes in depth 430 mm
- Deliverable in several standard RAL Colors
- Long service life and minimum maintenance gives lowest TCO
IP 44 EN 60529
IK10 EN 62262
-25° - +40° Celsius
Build-in moisture reduction
Recyclable aluminium
MFK variants
Basis cabinet
External dimension
h x b x d (mm)
h x b x d (mm)
Assembly size
h x b x d (mm)
h x b x d (mm)
Basis cabinet
External dimension
h x b x d (mm)
h x b x d (mm)
Assembly size
h x b x d (mm)
h x b x d (mm)

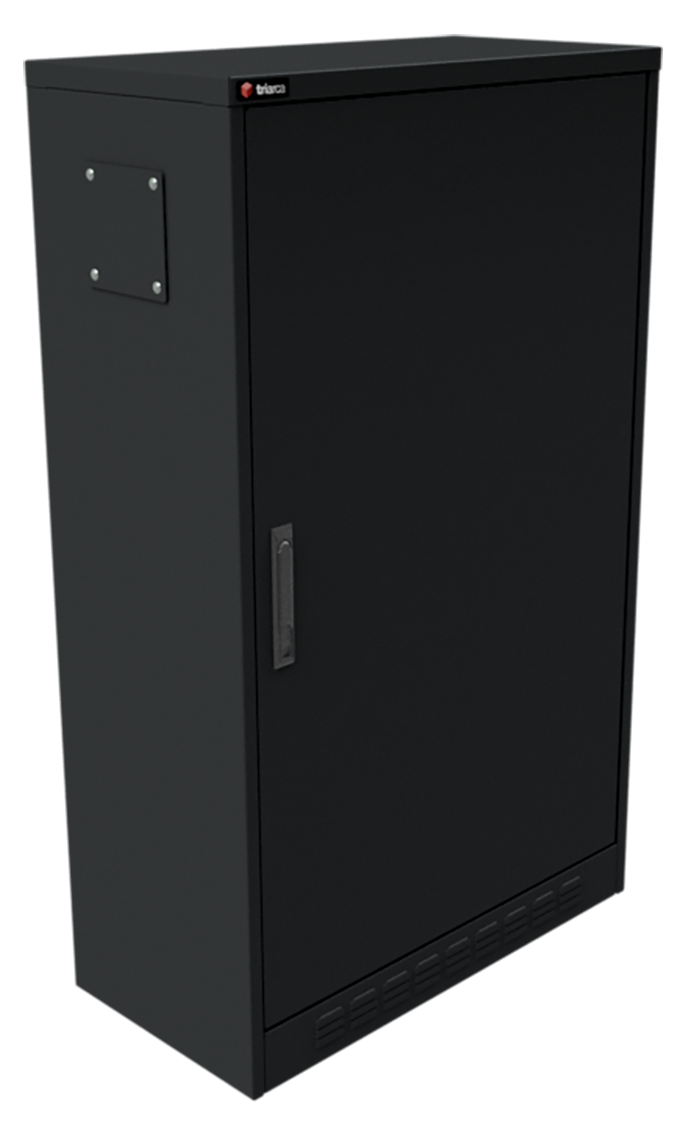

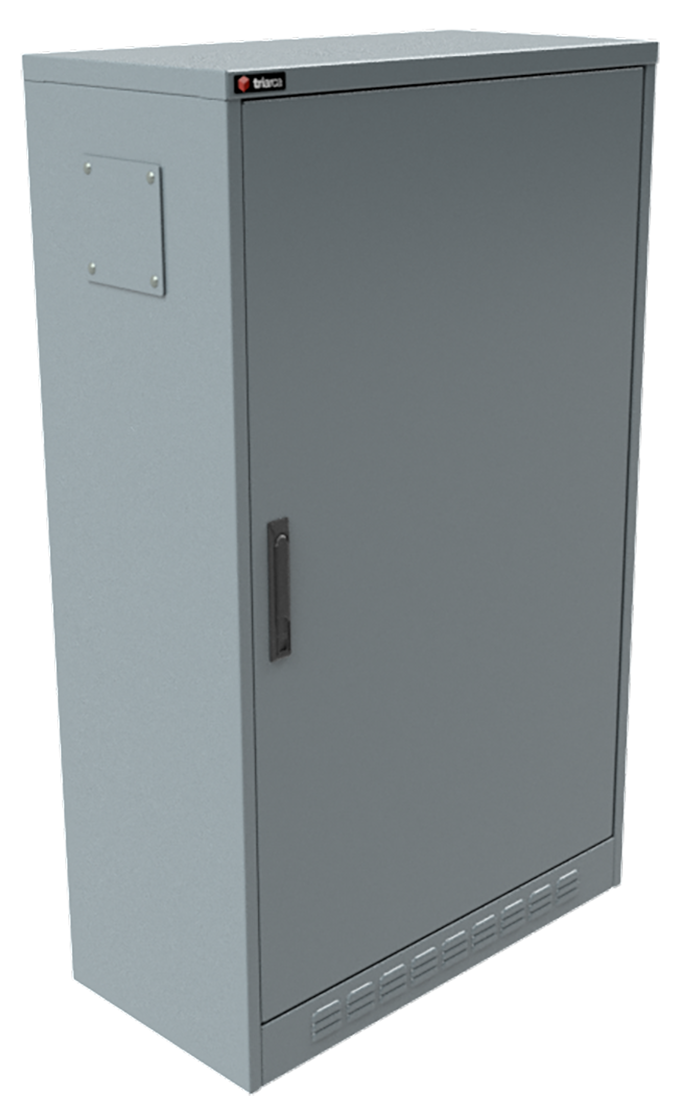

MFK
1444x866x433
0x812x406
Basis cabinet
External dimension
h x b x d (mm)
h x b x d (mm)
Assembly size
h x b x d (mm)
h x b x d (mm)
MFK
1444x1272x433
0x1218x406
Basis cabinet
External dimension
h x b x d (mm)
h x b x d (mm)
Assembly size
h x b x d (mm)
h x b x d (mm)

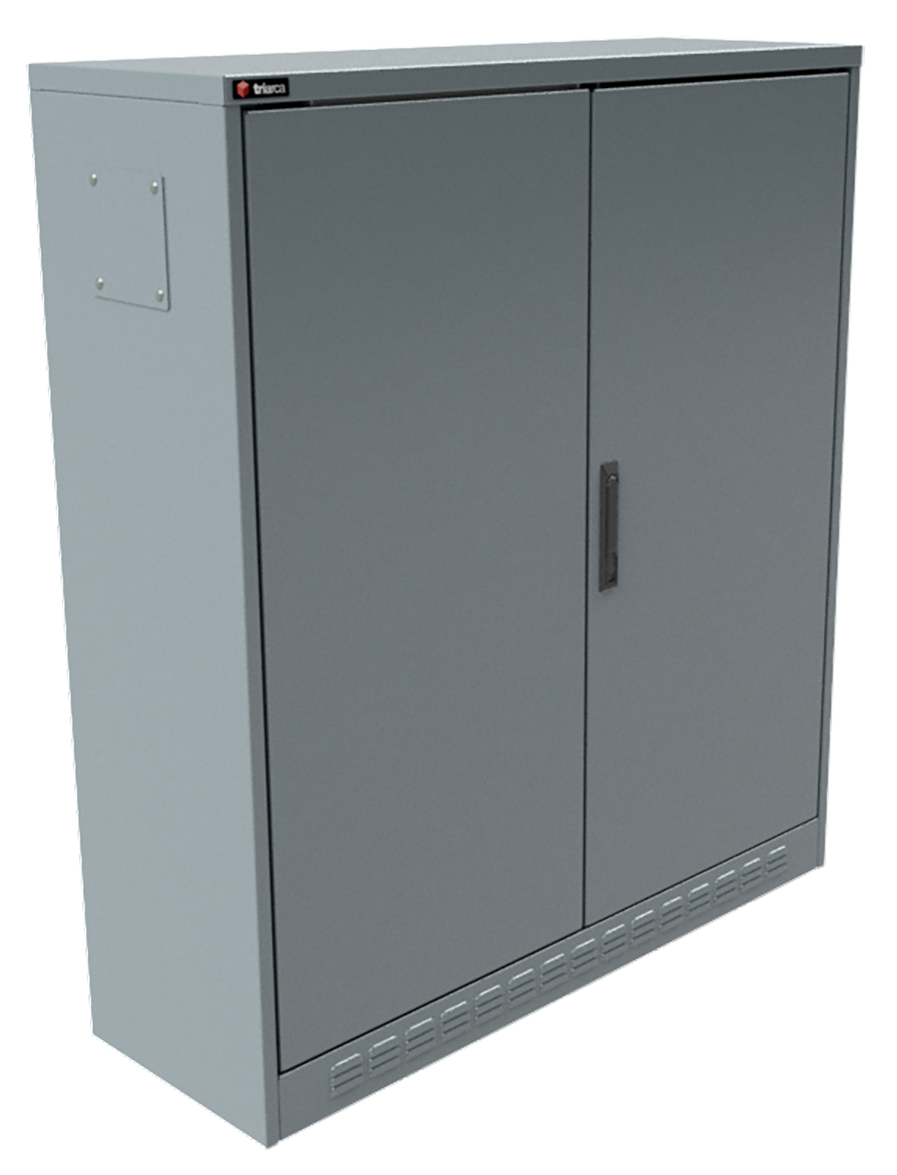

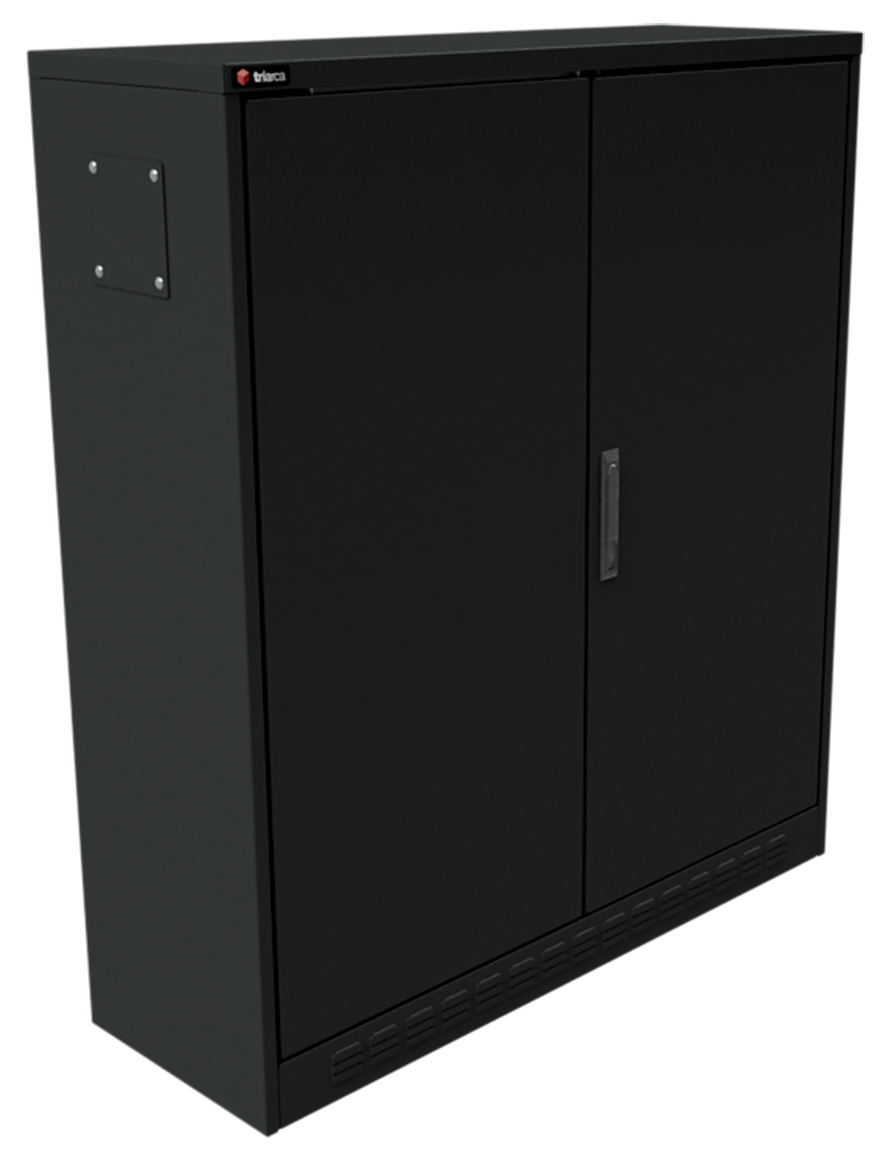

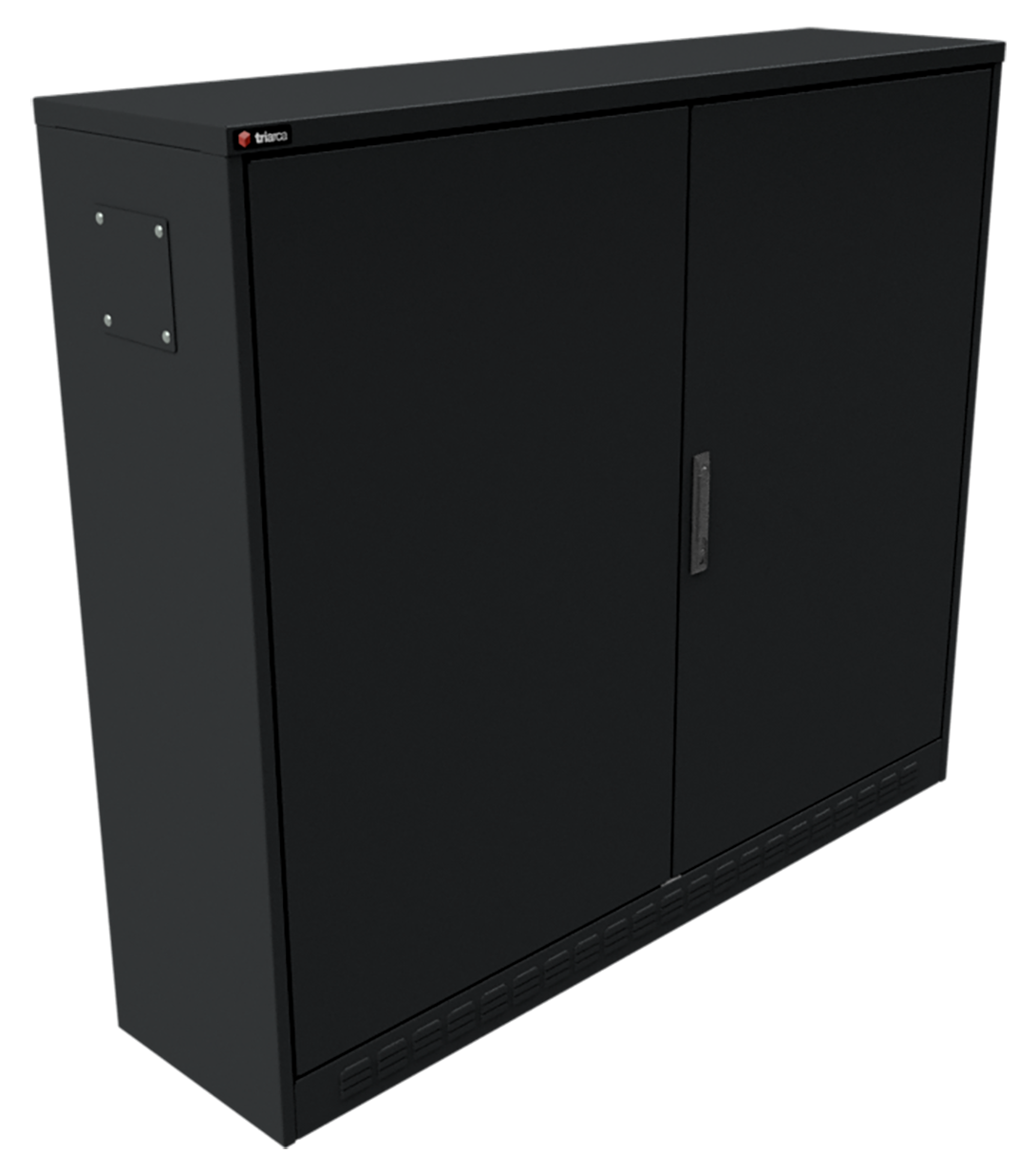

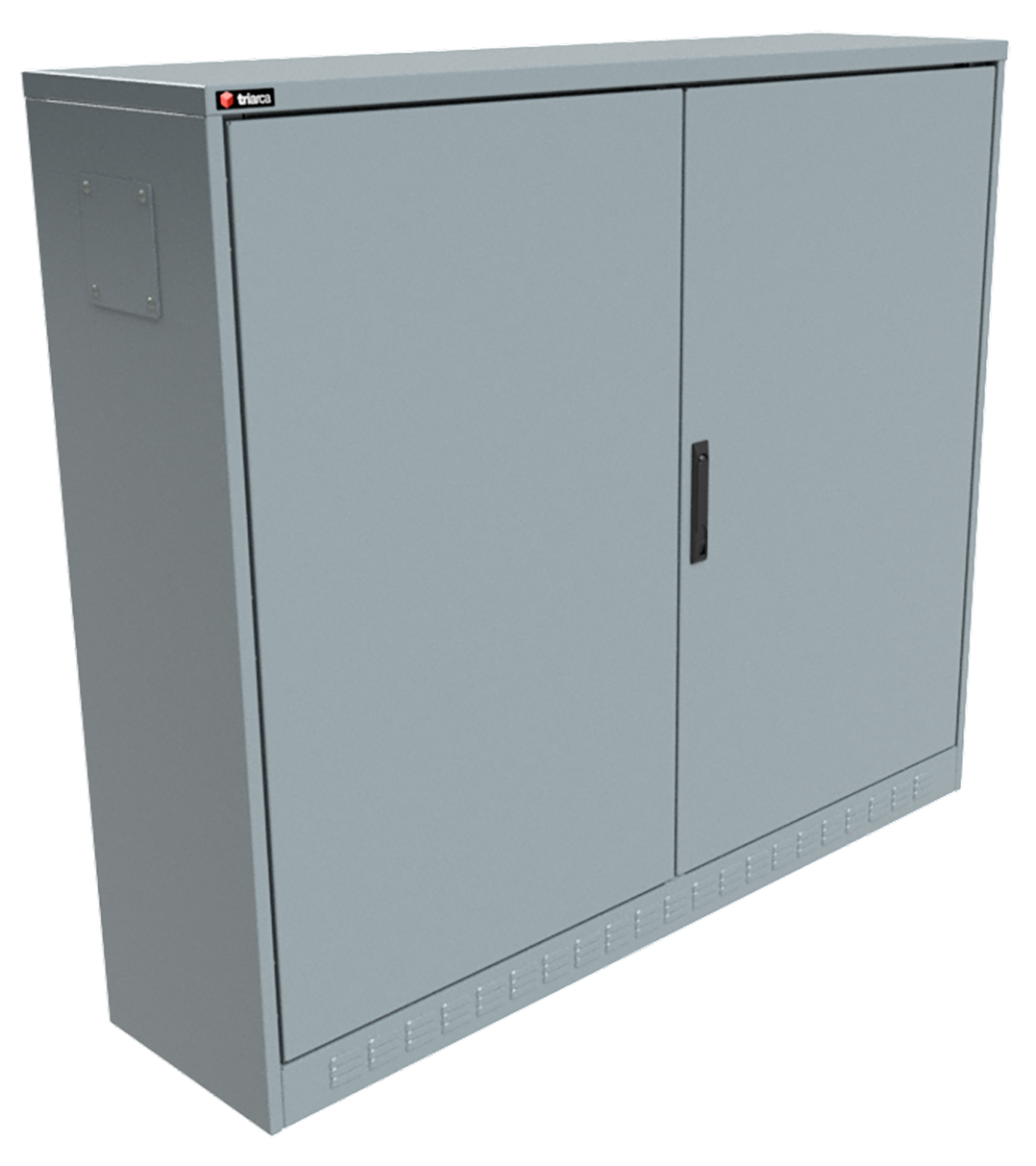

MFK
1444x1672x433
0x1618x406
Options
Colors:
